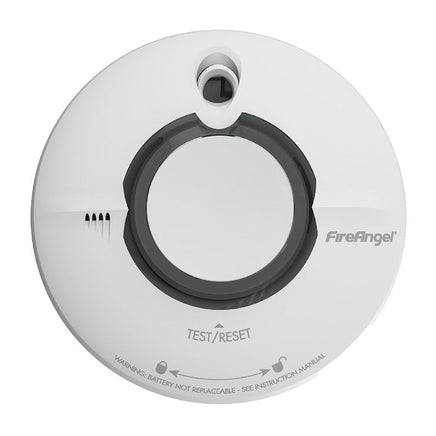

The WST-630 smoke alarm has been designed to give the earliest possible warning of fire via a network of wireless interlinked smoke alarms.

It incorporates the ground-breaking Thermoptek™ technology, which provides responsiveness to all fire types in one alarm. Thermoptek™ technology combines the very latest in optical sensing with thermal enhancement, providing fast reaction to both slow smouldering and fast flaming fires in a single alarm.

Each smoke alarm communicates with others by continuously sending and receiving wireless signals creating a 'meshed network.' This ensures that all alarms will trigger simultaneously in the event that a single unit enters alarm mode.

Features

• Sealed for life 10 year sensor and power pack;
• Smart Silence and locate feature - pressing the test/reset button on any alarm in the network will silence all but the initiating alarm;
• Up to 50 alarms can be linked in a single network;
• Wireless range up to 200 m in clear sight (we recommend not to exceed 35 m as the maximum direct distance between smoke alarms inside a property);
• Two LED indicators - amber (fault) and red (alarm and 'heartbeat');
• Low battery status of a single alarm communicated to all other alarms in the network;
• Easy to use, large, concave central button - ideally suited to the less able;
• Improved backing plate guarantees quick and easy fitting;
• 5 year warranty;
• Standards – certified to EN14604:2005 and LPCB approved.

Downloads

 Instruction manual
 Datasheet
 Declaration of conformity

Technical Information

• Technology: Thermally enhanced optical smoke sensor;
• Operation ( AC/DC): DC;
• Battery Type: Non-removable integrated lithium power pack - 10 year life in normal operating conditions;
• Alert Type: Loud 85dB Alarm at 3 metres;
• Installation Positions: Ceiling / Wall;
• Installation: 2 button press for wireless connectivity;
• Approvals: Certified to BS EN 14604:2005;
• Fixing Method: Backplate provides locking facility for security if required.
• Operating Frequenc:y 868 MHz;
• Max no. of connected units (network): 50 units;
• Networking: Multi-directional communication;
• Compatibility: Compatible with all FireAngel Wi-Safe 2 products;
• Range: 35m (over 200m in clear air).
