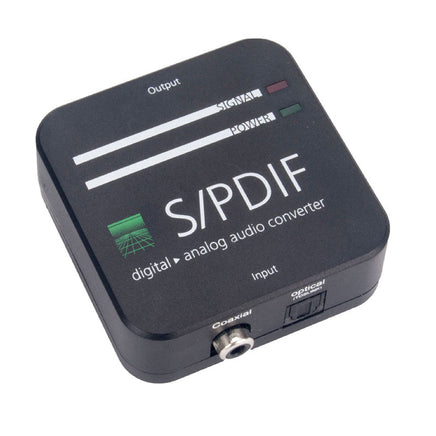

The S/PDIF-Box is a digital-to-analogue converter - DAC - for audio signals.

With this box it is possible to connect a digital-only sound source (for example a DVD-player or TV-Set-Top-Box) with analogue devices such as a TV-set or a stereo system.

The box is equipped with one line-in connection jack each for coaxial and optical cables and the desired input mode can be selected by a switch.

Digital audio signals received by the line-in ports are transformed to analogue audio signals which are provided by the two Phono connectors.

Features

• Digital Audio Converter;
• Mains Power Supply;
• Digital Optical Cable;
• Digital Coaxial Cable;
• Instructions.

Technical Information

• Power supply: 5 V DC 0.36 A up to 0.5 A via power supply unit;
• Power consumption: 0.5 W;
• Line-in ports: Coaxial (Phono-connector) and optical (TOSLINK-connector), selected by switch;
• Line-In format: SPDIF LPCM 2 channels, 24 bits;
• Sample rates: 32 KHz, 44.1 KHz, 48 KHz, 96 KHz;
• Line-Out ports: Stereo-audio, right and left channel (Phono-connectors);
• Output-level: 2 Vpp;
• Output impedance: 100 Ω;
• Dimensions: 25 x 73 x 65 mm (H x L x W);
• Weight: 42 g.
